Factory Directly Selling Price Fish Shrimp Farming Pond Aerator Machine Agricultural Equipment

FOB Reference Price:Get Latest Price
US $180-1,350 / Pieces | 10 Piece/Pieces Welcome Sample Order Firstly (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Farm Equipment, 4 Wheels 3 Floats
Use:
Agriculture
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Leafy
Model Number:
YC-1.5
After-sales Service Provided:
No overseas service provided
Name:
Agricultural Equipment
Application filed:
Fish Shrimp Farming Fish Pond etc
Power:
1.5kw 2HP
Voltage:
(1PH/ 3PH)220V\380V\400V\415V\440V
Ability of Increase Oxygen:
more than 2.56KG O2 Per Hour
Motor:
AC Electric Motor
Load QTY in 20GP container:
62-66pcs
Load QTY in 40HQ container:
135-140pcs
Noise:
Less Than 72.6dB
Supply Ability
Supply Ability:
200 Piece/Pieces per Day can work over time for clients if too much order in one month
Packaging & Delivery
Packaging Details
Standard Export Package. Sample order packaged Customize Wooden Box. Can accept Customize packing also.
Port
Ningbo or Shanghai or Shenzhen
Lead Time :
7-15 working days after received advance payment
Product Description

Agricultural Equipment


With the continuous development of aquaculture fisheries, intensive high-yielding aquaculture technology has been widely used, fishery farming increased significantly. In the process of aquaculture production increase, aerator has become an essential equipment to achieve high-yield fisheries intensive, plays an important role in the development of fishery economy. Reasonable use of oxygen machine can effectively increase the dissolved oxygen in the pool water, accelerate the pond water body material circulation, reduce or eliminate harmful substances, and promote plankton breeding. For the prevention and mitigation of fish floating head, to prevent flooding and improve pond water quality conditions, increase the amount of fish fed and increase yield and so have a good role in promoting.


Advantages:
1. The use of curved bevel gear instead of worm gear. High efficiency, can saving more than 20% electric energy than traditional models.
2. Bevel gears made of chromium-manganese-titanium alloy steel, surface carbonitriding , high hardness, long service life.
3. The use of mechanical seals to ensure that no oil pollution.
4. Motor built-in protector, to avoid accidental burning broken machine.
5. New HDPE float boat, New nylon impeller, stainless steel 304 shaft and frame.

Specification
Model
Power(KW)
Power
(HP)
Voltage(V)
Loading Pond Area
Power Efficiency Kg O2/kwh
Ability of Increase Oxygen (Kg/h)
1*20 Container
1*40 Container
YC-0.75
0.75
1
220
666-3330 square meter
≥1.51
≥1.13
85pcs
185pcs
YC-0.75
0.75
1
380
666-3330 square meter
≥1.51
≥1.13
85pcs
185pcs
YC-1.5
1.5
2
220
1998-6666 square meter
≥1.44
≥2.13
68pcs
135pcs
YC-1.5
1.5
2
380
1998-6666 square meter
≥1.44
≥2.13
68pcs
135pcs
YC-2.2
2.2
3
380
2664-7992 square meter
≥1.5
≥3.15
45pcs
95pcs
YC-3.0
3.0
4
380
3330-9990 square meter
≥2.5
≥4.5
35pcs
70pcs
YC-4.0
4.0
5
380
3396-119881square meter
≥3.5
≥5.5
20pcs
40pcs
Accessories
Quantity
Specification
1. Motor
1set
1.5kw/2HP,3Phases/1Phase, 220v-460v. 9-splines.
2. Gear Reducer
1set
14:1/16:1,Bevel Gear Style, Cast Iron Body.

3. Impellers

4set
1. Unique one-piece design with forified structure.
2. Material: Virgin PP or Nylon with UV resistance(100% new material)
3. Dimension:210*670mm  Net Weight: 2.7Kg


4. Boat Float


3set
1.Integral blow molded formation, no water seeping problem
2. Integral blow molded formation, no water seeping problem
3. Excellent in withstanding larger impact, corrosion free and weathering
4. Material: Virgin HDPE with UV resistance(100% new material)
5. Dimension:1750*330*210mm             Net Weight:7.5KG
5. Motor Cover
1set
Material: Virgin HDPE with UV resistance(100% new material) Net Weight: 2.0KG
6. Movable Joint
2set
Material: Rubber and 304 Stainless Steel
7. Transmission shaft
2set

Material: 304 Stainless Steel Dimension:25*830mm
8. Frame
1set
1.Material: 304 Stainless Steel
2.Dimension:1700*736mm,(Folding Frame with ear)

9.Bearing Base

2set
1. Adjustable 3 in 1 plastic bearing, easy for replacement.
2. No aging or cracking problem for the specially made nylong body.
3. Needle Bearing in the middle, low force of friction.
4. Long working life, 2 times than normal type bearing

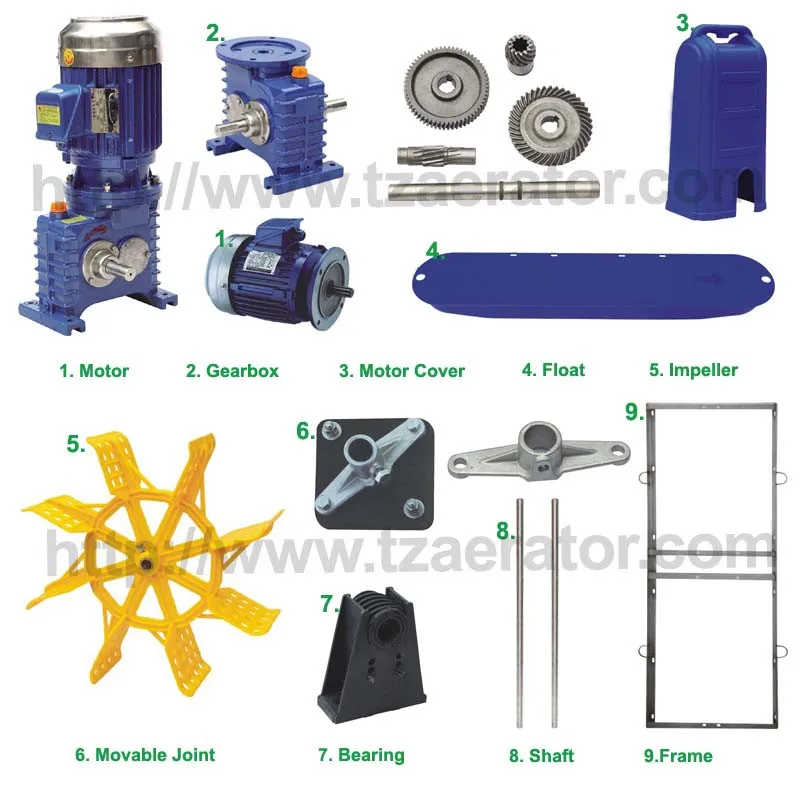

Spare Parts Photos
Why Choose Us

A.Products: High quality and efficiency, energy saving, environment protection.

High Quality Motor:

1. Expertise design for aquaculture industry.
2. The unique aerator motor made under "ISO9001"system.
3. Top quality and above CNS standard.
4. Strict Q.C. to ensure best quality and performance.

Low Friction Coefficient Reducer
1. Updated high quality alloy components.
2. Strong and durable gear wheel and input shaft.
3. Smooth rotation with low resistance to decrease energy losses.
4. "Double Bearing" on each side of output shaft, wide gear wheel used to provide better
    torque output and durability.

Higher Performance HDPE Impeller with Brass Parts:
1. Replaceable paddle, lower maintenance cost.
2. Toughness against corrosion and sunburn resistance.
3. Professional designed paddle and best blade angle, substantial water splash, strong water
    current, and high oxygenation performance.
4. The "Support or Anchor Part" of the blade on the rim is more strengthened and unique
    designed.
5. 100% New HDPE with UV resistance material and without adding any other material to increase weight.

HDPE Float Boat:

1. Made of 100% new HDPE material to optimize full ductility.
2. Resist impact, acid-alkalinity and sun exposure.
3. One-piece blow molded with absolutely no seeping.
4. 100% New HDPE with UV resistance material and without adding any other material to increase weight.

High Efficiency Oxygen Tranfering Ability:

1HP Paddle wheel Aerator ----- ≥ 1.3kg O2/h.     Market Standard: 1.1kg O2/h.
2HP Paddle wheel Aerator -----≥ 2.6kg O2/h.      Market Standard: 1.5kg O2/h.
3HP Paddle wheel Aerator -----≥ 3.8kg O2/h.      Market Standard: 2.0kg O2/h. 4HP Paddlewheel Aerator -----≥ 5.2kg O2/h.      Market Standard: 3.5kg O2/h.



B. Not Only Selling You Aerator, Professional Customize Aeration System for Your Pond.

You can get your own aeration system from our technical department after you provide us one of information as below:
1. Your ponds size, water depth, breeding density, aquaculture species.
2. Your target price for your ponds aeration system.
3.  Your request of Oxygen per hour for your pond.



C. Professional Sale Service : Make you NO-Worry for use.

1. Can customize quality level to match customer's target price.
2. Can provide samples first, samples are packaged by wooden box.
3. Can provide any accessories parts on aerator for any quantity.
4. Many different models and different quality level for customer to choose.
5. Warranty: Different warranty for different quality level.
6.  Whole Life free technical guidance, follow up after use situation.​


Pre-sale:

1. Suggest to client suitable machine model, final product capacity.
2. Introduce machine's structure and features in detail, explain the price component.
3. Answer customer concerned questions.


After-sale:

1. Start production as soon as receiving down payment.
2. Send photos of machine in manufacturing and finished photos to client,
    for your better learn about the machine's condition.
3. Delivery machine in time, taking photos during loading, so you can "remote monitoring"
    your goods.
4. Documents and certificate available in time.
5. Manual documents available. Engineer can be sent to client site for installation instruction.

Clients Pond Aerator
Certifications
Database


1. 11 years experience in Aerator Industry.

2. Sale 60000 sets per year.

3. Save 20% energy than other factory.

4. Dissolved oxygen 15% higher than other factory.


5. Reorder rate up to 94.8%.

6. More than 92..2% customers make payment before meeting us!



18 Years production experience just for Aerator!
