Factory Price Aquacuture Machine Indoor Fish Farming Equipment Tank Fish Farming System

FOB Reference Price:Get Latest Price
US $180-1,350 / Pieces | 10 Piece/Pieces Welcome Sample Order Firstly (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Leafy
Model Number:
YC-1.5
Name:
Fish Farming System
Application filed:
Fish Shrimp Farming Fish Pond etc
Power:
1.5kw 2HP
Voltage:
(1PH/ 3PH)220V\380V\400V\415V\440V
Ability of Increase Oxygen:
more than 2.56KG O2 Per Hour
Motor:
AC Electric Motor
Load QTY in 20GP container:
62-66pcs
Load QTY in 40HQ container:
135-140pcs
Warranty:
One year
Certificates:
ISO, CE etc
SupplyAbility
SupplyAbility:
3000 Piece/Pieces per Month can work over time for clients if too much order in one month
Packaging & Delivery
Packaging Details
Standard Export Package. Thickening Cartons Box with Bubble Wrap for Motor and Gear Box, other spare parts are nude packing . Sample order packaged Customize Wooden Box. Can accept Customize packing also.
Port
Ningbo or Shanghai or Shenzhen
Lead Time :
7-15 working days after received advance payment
Product Description

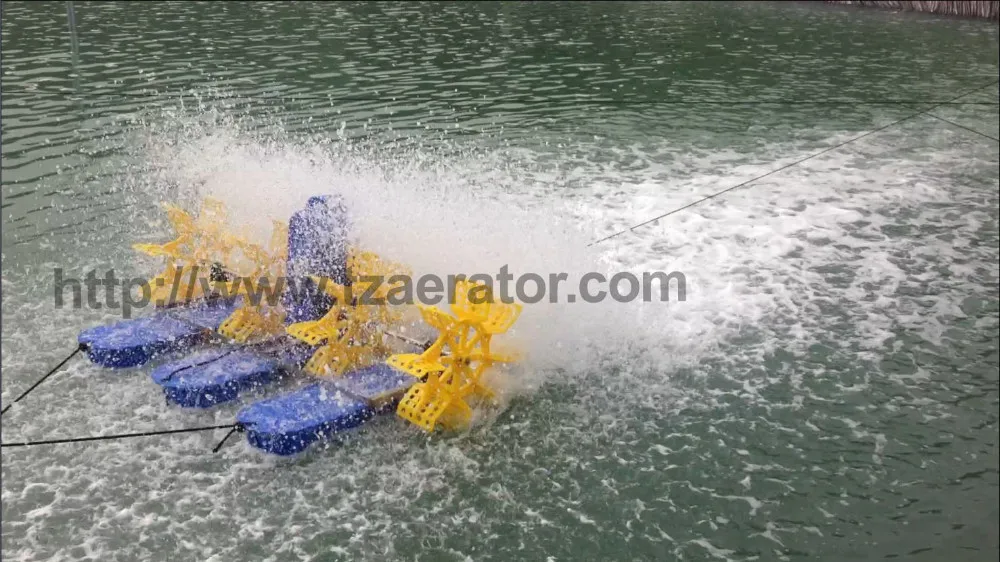

Fish Farming System


Working Principle:


When the motor starts running, impellers will rotate and touche water surface, it will press air into water and therefore
increase some oxygen in water.

The most importance is working impellers can make sufficient water splash and strong water current. Large amount of
splash will take air into water and enrich obviously dissolved oxygen in water. Meantime, water waves and current will
eliminate harmful substances like ammounia, nitrite, hydrogen sulfide, etc out of water and finally clean water.

All brand new materials produced components to make sure our customers receive high quality items. It can be used
both on freshwater and seawater.



Advantages:
1. The use of curved bevel gear instead of worm gear. High efficiency, can saving more than 20% electric energy than traditional models.
2. Bevel gears made of chromium-manganese-titanium alloy steel, surface carbonitriding , high hardness, long service life.
3. Mechanical seal is available to against oil leak pollution.
4. Built-in protector is available to avoid motor being burnt accidentally.
5.The impeller is made of New PP. The spoke and vane is shaped with plastic only one time.
6.The flexible gearing is fixed by the stainless wheel bolt.
7.High oxygenation rate: 2.26kg/h.
8.Easy installation and maintenance.
9.Stainless steel frame is sturdy with no deformation and high durability.

Specification
Model
Power(KW)
Power
(HP)
Voltage(V)
Loading Pond Area
Power Efficiency Kg O2/kwh
Ability of Increase Oxygen (Kg/h)
1*20 Container
1*40 Container
YC-0.75
0.75
1
220
666-3330 square meter
≥1.51
≥1.13
85pcs
185pcs
YC-0.75
0.75
1
380
666-3330 square meter
≥1.51
≥1.13
85pcs
185pcs
YC-1.5
1.5
2
220
1998-6666 square meter
≥1.44
≥2.13
68pcs
135pcs
YC-1.5
1.5
2
380
1998-6666 square meter
≥1.44
≥2.13
68pcs
135pcs
YC-2.2
2.2
3
380
2664-7992 square meter
≥1.5
≥3.15
45pcs
95pcs
YC-3.0
3.0
4
380
3330-9990 square meter
≥2.5
≥4.5
35pcs
70pcs
YC-4.0
4.0
5
380
3396-119881square meter
≥3.5
≥5.5
20pcs
40pcs
Accessories
Quantity
Specification
1. Motor
1set
1.5kw/2HP,3Phases/1Phase, 220v-460v. 9-splines.
2. Gear Reducer
1set
14:1/16:1,Bevel Gear Style, Cast Iron Body.

3. Impellers

4set
1. Unique one-piece design with forified structure.
2. Material: Virgin PP or Nylon with UV resistance(100% new material)
3. Dimension:210*670mm  Net Weight: 2.7Kg


4. Boat Float


3set
1.Integral blow molded formation, no water seeping problem
2. Integral blow molded formation, no water seeping problem
3. Excellent in withstanding larger impact, corrosion free and weathering
4. Material: Virgin HDPE with UV resistance(100% new material)
5. Dimension:1750*330*210mm             Net Weight:7.5KG
5. Motor Cover
1set
Material: Virgin HDPE with UV resistance(100% new material) Net Weight: 2.0KG
6. Movable Joint
2set
Material: Rubber and 304 Stainless Steel
7. Transmission shaft
2set

Material: 304 Stainless Steel Dimension:25*830mm
8. Frame
1set
1.Material: 304 Stainless Steel
2.Dimension:1700*736mm,(Folding Frame with ear)

9.Bearing Base

2set
1. Adjustable 3 in 1 plastic bearing, easy for replacement.
2. No aging or cracking problem for the specially made nylong body.
3. Needle Bearing in the middle, low force of friction.
4. Long working life, 2 times than normal type bearing

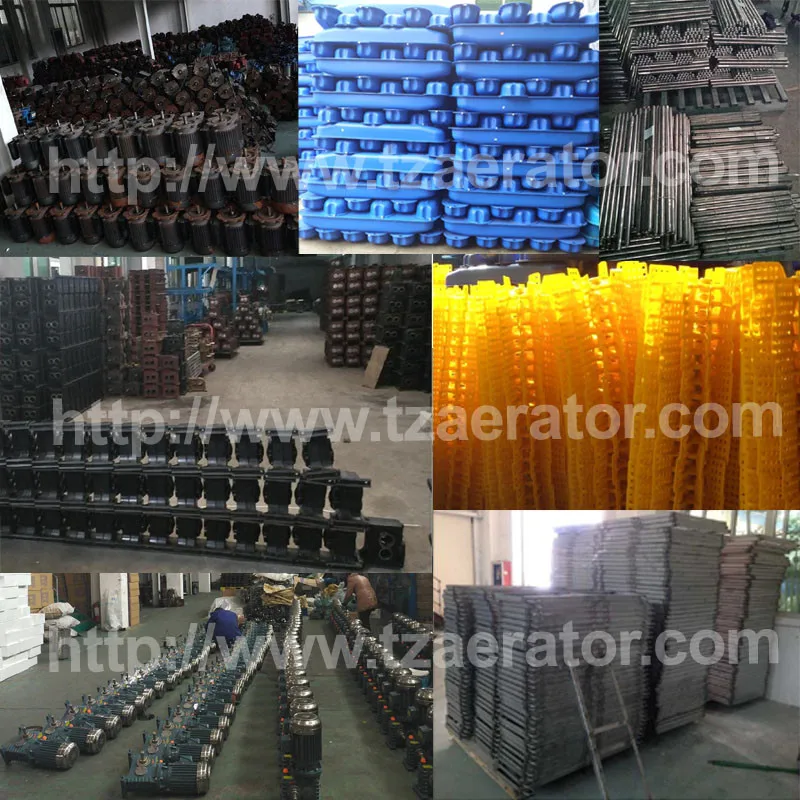

Spare Parts Photos
Why Choose Us

A.Products: High quality and efficiency, energy saving, environment protection.

High Quality Motor:

1. Expertise design for aquaculture industry.
2. The unique aerator motor made under "ISO9001"system.
3. Top quality and above CNS standard.
4. Strict Q.C. to ensure best quality and performance.

Low Friction Coefficient Reducer
1. Updated high quality alloy components.
2. Strong and durable gear wheel and input shaft.
3. Smooth rotation with low resistance to decrease energy losses.
4. "Double Bearing" on each side of output shaft, wide gear wheel used to provide better
    torque output and durability.

Higher Performance HDPE Impeller with Brass Parts:
1. Replaceable paddle, lower maintenance cost.
2. Toughness against corrosion and sunburn resistance.
3. Professional designed paddle and best blade angle, substantial water splash, strong water
    current, and high oxygenation performance.
4. The "Support or Anchor Part" of the blade on the rim is more strengthened and unique
    designed.
5. 100% New HDPE with UV resistance material and without adding any other material to increase weight.

HDPE Float Boat:

1. Made of 100% new HDPE material to optimize full ductility.
2. Resist impact, acid-alkalinity and sun exposure.
3. One-piece blow molded with absolutely no seeping.
4. 100% New HDPE with UV resistance material and without adding any other material to increase weight.

High Efficiency Oxygen Tranfering Ability:

1HP Paddle wheel Aerator ----- ≥ 1.3kg O2/h.     Market Standard: 1.1kg O2/h.
2HP Paddle wheel Aerator -----≥ 2.6kg O2/h.      Market Standard: 1.5kg O2/h.
3HP Paddle wheel Aerator -----≥ 3.8kg O2/h.      Market Standard: 2.0kg O2/h. 4HP Paddlewheel Aerator -----≥ 5.2kg O2/h.      Market Standard: 3.5kg O2/h.



B. Not Only Selling You Aerator, Professional Customize Aeration System for Your Pond.

You can get your own aeration system from our technical department after you provide us one of information as below:
1. Your ponds size, water depth, breeding density, aquaculture species.
2. Your target price for your ponds aeration system.
3.  Your request of Oxygen per hour for your pond.


Clients Pond Aerator
Service


Professional Sale Service : Make you NO-Worry for use.

1. Can customize quality level to match customer's target price.
2. Can provide samples first, samples are packaged by wooden box.
3. Can provide any accessories parts on aerator for any quantity.
4. Many different models and different quality level for customer to choose.
5. Warranty: Different warranty for different quality level.
6. Whole Life free technical guidance, follow up after use situation.​


Pre-sale:

1. Suggest to client suitable machine model, final product capacity.
2. Introduce machine's structure and features in detail, explain the price component.
3. Answer customer concerned questions.


After-sale:

1. Start production as soon as receiving down payment.
2. Send photos of machine in manufacturing and finished photos to client,
for your better learn about the machine's condition.
3. Delivery machine in time, taking photos during loading, so you can "remote monitoring"
your goods.
4. Documents and certificate available in time.
5. Manual documents available. Engineer can be sent to client site for installation instruction.

Certifications
Database


1. 11 years experience in Aerator Industry.

2. Sale 60000 sets per year.

3. Save 20% energy than other factory.

4. Dissolved oxygen 15% higher than other factory.


5. Reorder rate up to 94.8%.

6. More than 92..2% customers make payment before meeting us!



18 Years production experience just for Aerator!
